Valve Stem Installed Height
WARNING: This page is about a different variant/trim than selected.

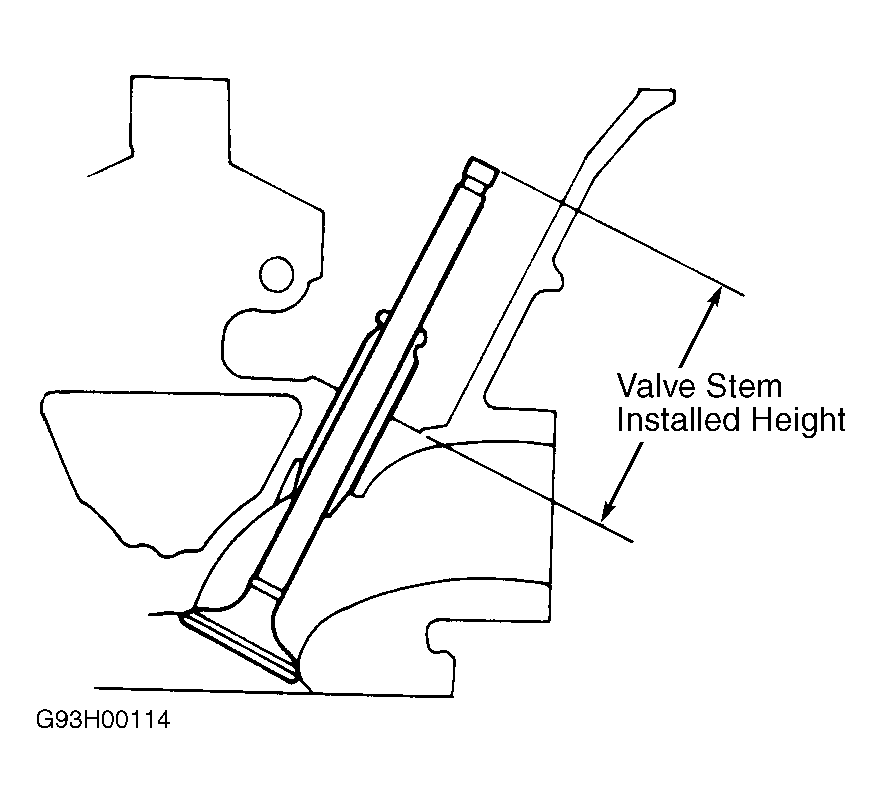

After servicing valves, measure valve stem installed height. See Fig 1 . If valve stem installed height exceeds 1.633" (41.485 mm) for intake valve, or 1.712" (43.485 mm) for exhaust valve, replace valve. If valve stem installed height still exceeds limit, replace cylinder head.
