Brake Switch Test: Integra

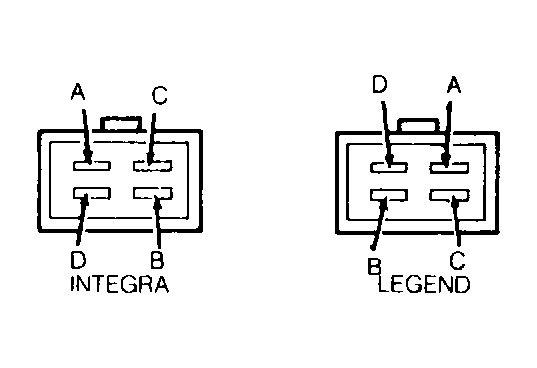

  1. Disconnect 4-pin connector from switch. Check continuity between terminals "A" and "B" with brake pedal released, and between terminals "C" and "D" with pedal pressed. See Figure .
  2. Ensure circuit is open between terminals "C" and "D" with brake pedal released, and between terminals "A" and "B" with brake pedal pressed. Adjust pedal height or replace switch as necessary. See BRAKE PEDAL HEIGHT ADJUSTMENT  .
